Integrate the SDK

This article shows how to integrate the Server Gateway C++ SDK and run the sample project.

Make sure your server meets the following requirements.

Operating system

• Ubuntu (14.04 or higher)
• CentOS (6.6 or higher)

CPU architecture

• arm64
• x86-64

If you need to run the SDK on other architectures, submit a ticket to contact technical support.

Performance

• CPU：8-core, 1.8 GHz or higher.
• 2 GB of RAM or higher. 4 GB or higher is recommended.

Network

• The server is connected to the internet and has an internet IP.
• The server can access *.agora.io and *.agoralab.co.

• glibc 2.18 or later
• gcc 4.8 or later

If you are using Ubuntu, taking Ubuntu 20.04.3 LTS as an example, install the following dependencies in your server:

# Install aptitude

sudo apt install aptitude

# Install build-essential libx11-dev libxcomposite-dev libxext-dev libxfixes-dev libxdamage-dev cmake

sudo aptitude install libx11-dev libxcomposite-dev libxext-dev libxfixes-dev libxdamage-dev cmake

If you are using CentOS, taking CentOS 7.9.2009 as an example, install the following dependencies in your server:

sudo yum groupinstall "Development Tools"

sudo yum install wget

sudo yum groupinstall X11

See Get Started with Agora to learn how to get an Agora App ID and an RTC temporary token.

Run the following command to get the latest x86-64 SDK package and decompress the file. If you need to get the SDK build on other architectures, submit a ticket to contact technical support.

# Get SDK

wget https://download.agora.io/sdk/release/Agora-RTC-x86_64-linux-gnu-v3.8.202.20-20220627_152601-214165.tgz

# Decompress the tgz file

tar xvf Agora-RTC-x86_64-linux-gnu-v3.8.202.20-20220627_152601-214165.tgz

Run the following commands to compile the sample project:

# Switch to the sample project folder

cd agora_rtc_sdk/example

# Build the sample project

./build-x86_64.sh

# Sync and video/audio data needed by the project

cd out

../sync-data.sh

# Export the libraries from the SDK to LD_LIBRARY_PATH

export LD_LIBRARY_PATH=../../agora_sdk:$LD_LIBRARY_PATH

This section uses the sample_send_h264_pcm project to demonstrate sending media streams from the server.

Run the sample_send_h264_pcm sample project. Replace YOUR_RTC_TOKEN, the parameter value of --token, with your RTC temporary token. Replace the parameter value of --channelId with the value of your RTC channel ID. In this page, the value of --channelId is set to demo_channel.

You must specify the RTC channel ID that is used to generate the RTC temporary token.

# Run sample_send_h264_pcm to send video in H.264 format and audio in PCM format

./sample_send_h264_pcm --token YOUR_RTC_TOKEN --channelId demo_channel --videoFile test_data/send_video.h264 --audioFile test_data/send_audio_16k_1ch.pcm

1. Use a PC or mobile device to open the Agora RTC Web SDK sample project and specify the following fields:

   • APP ID：Specify your Agora app ID, which must be the same as the app ID used in the server; otherwise, the server cannot communicate with the client.
   • Channel Name：Specify your channel name, which must be the same as the channel ID used in the server; otherwise, the server cannot communicate with the client. In this page, we set the value to demo_channel.
   • Token: Specify your RTC temporary token, which is the same as the temporary token used in the server.

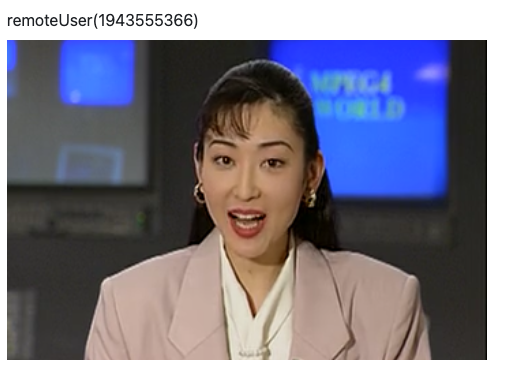

2. Click Join to receive media streams from the server.



This section uses the sample_send_h264_pcm project to demonstrate receiving media streams from the client.

Run the sample_receive_h264_pcm project. Replace YOUR_RTC_TOKEN, the parameter value of --token, with your RTC temporary token. Replace the parameter value of --channelId with the value of your RTC channel ID. In this page, the value of --channelId is set to demo_channel.

# Run sample_receive_h264_pcm to receive video in H.264 format and audio in PCM format

./sample_receive_h264_pcm --token YOUR_RTC_TOKEN --channelId demo_channel

When the sample project is running, the console prints the following information:

[ APP_LOG_INFO ] Subscribe streams from all remote users

[ APP_LOG_INFO ] Start receiving audio & video data ...

[ APP_LOG_INFO ] Created file received_audio.pcm to save received PCM samples

[ APP_LOG_INFO ] onUserAudioTrackStateChanged: userId 4088243221, state 1, reason 0

[ APP_LOG_INFO ] onUserAudioTrackStateChanged: userId 4088243221, state 2, reason 6

[ APP_LOG_INFO ] onUserInfoUpdated: userId 4088243221, msg 0, val 0

[ APP_LOG_INFO ] onUserInfoUpdated: userId 4088243221, msg 4, val 1

[ APP_LOG_INFO ] onUserInfoUpdated: userId 4088243221, msg 8, val 1

[ APP_LOG_INFO ] onUserInfoUpdated: userId 4088243221, msg 1, val 1

1. Use a PC or mobile device to open the Agora RTC Web SDK sample project and specify the following fields:

• APP ID：Specify your Agora app ID, which must be the same as the app ID used in the server; otherwise, the server cannot communicate with the client.
• Channel Name：Specify your channel name, which must be the same as the channel ID used in the server; otherwise, the server cannot communicate with the client. In this page, the value is set to demo_channel.
• Token: Specify your RTC temporary token, which is the same as the temporary token used in the server.

2. Click Join to receive media streams to the server.

   When the sample project is running, the console prints the following information:

   [ APP_LOG_INFO ] onUserInfoUpdated: userId 436868190, msg 0, val 1


   [ APP_LOG_INFO ] onUserInfoUpdated: userId 436868190, msg 4, val 1


   [ APP_LOG_INFO ] onUserInfoUpdated: userId 436868190, msg 8, val 1


   [ APP_LOG_INFO ] onUserInfoUpdated: userId 436868190, msg 1, val 1


   [ APP_LOG_INFO ] onUserInfoUpdated: userId 436868190, msg 0, val 0


   [ APP_LOG_INFO ] onUserInfoUpdated: userId 436868190, msg 1, val 0


   [ APP_LOG_INFO ] onUserVideoTrackSubscribed: userId 436868190, codecType 1, encodedFrameOnly 1


   [ APP_LOG_INFO ] onUserAudioTrackStateChanged: userId 436868190, state 1, reason 0


   [ APP_LOG_INFO ] onUserAudioTrackStateChanged: userId 436868190, state 2, reason 6


   [ APP_LOG_INFO ] Created file received_video.h264 to save received H264 frames


   [ APP_LOG_INFO ] onUserAudioTrackStateChanged: userId 436868190, state 0, reason 7


The received video and audio are saved in the received_video.h264 file and the received_audio.pcm file, respectively.
