UI Kit quickstart

Instant messaging connects people wherever they are and allows them to communicate with others in real time. With built-in user interfaces (UI) for the conversation list and contact list, the Agora Chat UI Kit enables you to quickly embed real-time messaging into your app without requiring extra effort on the UI.

This page shows a sample code to add peer-to-peer messaging into your app by using the Agora Chat UI Kit.

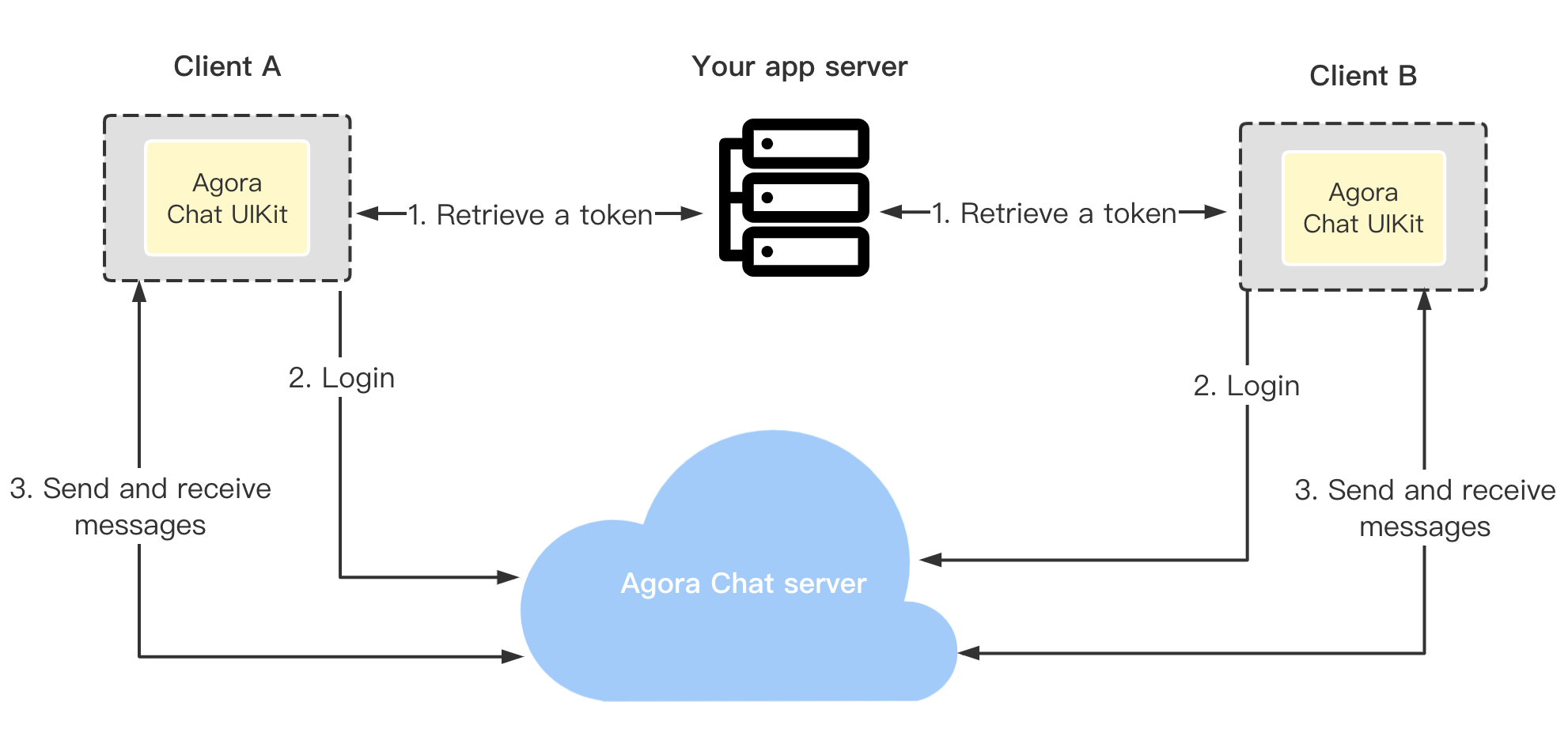

The following figure shows the workflow of how clients send and receive peer-to-peer messages:

1. Clients retrieve a token from your app server.
2. Client A and Client B log in to Agora Chat.
3. Client A sends a message to Client B. The message is sent to the Agora Chat server, and the server delivers the message to Client B. When Client B receives the message, the SDK triggers an event. Client B listens for the event and gets the message.

• An Android simulator or a physical Android device.
• Android Studio 3.2 or higher.
• Java Development Kit (JDK). You can refer to the User Guide of Android for applicable versions.

Follow the steps to create the environment necessary to add video call into your app.

1. For new projects, in Android Studio, create a Phone and Tablet Android project with an Empty Activity.

   After creating the project, Android Studio automatically starts gradle sync. Ensure that the sync succeeds before you continue.

2. Integrate the Chat SDK into your project with Maven Central.

   a. In /Gradle Scripts/build.gradle(Project: <projectname>), add the following lines to add the Maven Central dependency:




   _12

   buildscript {

   _12

   repositories {

   _12

   ...

   _12

   mavenCentral()

   _12

   }

   _12

   }

   _12

   allprojects {

   _12

   repositories {

   _12

   ...

   _12

   mavenCentral()

   _12

   }

   _12

   }



   The way to add the Maven Central dependency can be different if you set dependencyResolutionManagement in your Android project.

   b. In /Gradle Scripts/build.gradle(Module: <projectname>.app), add the following lines to integrate the Chat UI Kit into your Android project:




   _16

   android {

   _16

   defaultConfig {

   _16

   // The Android OS version should be 19 or higher.

   _16

   minSdkVersion 19

   _16

   }

   _16

   compileOptions {

   _16

   sourceCompatibility JavaVersion.VERSION_1_8

   _16

   targetCompatibility JavaVersion.VERSION_1_8

   _16

   }

   _16

   }

   _16

   dependencies {

   _16

   ...

   _16

   // Replace X.Y.Z with the latest version of the Chat UI Kit.

   _16

   // For the latest version, go to https://search.maven.org/.

   _16

   implementation 'io.agora.rtc:chat-uikit:X.Y.Z'

   _16

   }




3. Add permissions for network and device access.

   In /app/Manifests/AndroidManifest.xml, add the following permissions after </application>:




   _7

   <uses-permission android:name="android.permission.INTERNET" />

   _7

   <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE"/>

   _7

   <uses-permission android:name="android.permission.WAKE_LOCK"/>

   _7

   <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE"/>

   _7

   <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"/>

   _7

   <uses-permission android:name="android.permission.CAMERA"/>

   _7

   <uses-permission android:name="android.permission.RECORD_AUDIO"/>




   These are the minimum permissions you need to add to start Chat. You can also add other permissions according to your use case.

4. Prevent code obfuscation.

   In /Gradle Scripts/proguard-rules.pro, add the following line:




   _2

   -keep class io.agora.** {*;}

   _2

   -dontwarn io.agora.**




This section shows how to use the Chat UI Kit to implement peer-to-peer messaging in your app step by step.

1. To add the text strings used by the UI, open app/res/values/strings.xml and replace the content with the following:




   _23

   <resources>

   _23

   <string name="app_name">AgoraChatUIKitQuickstart</string>

   _23

   _23

   <string name="username_or_pwd_miss">Username or password is empty</string>

   _23

   <string name="sign_up_success">Sign up success!</string>

   _23

   <string name="sign_in_success">Sign in success!</string>

   _23

   <string name="sign_out_success">Sign out success!</string>

   _23

   <string name="send_message_success">Send message success!</string>

   _23

   <string name="enter_username">Enter username</string>

   _23

   <string name="enter_password">Enter password</string>

   _23

   <string name="sign_in">Sign in</string>

   _23

   <string name="sign_out">Sign out</string>

   _23

   <string name="sign_up">Sign up</string>

   _23

   <string name="enter_to_username">Enter to username</string>

   _23

   <string name="start_chat">Start chat</string>

   _23

   <string name="enter_content">Enter content</string>

   _23

   <string name="log_hint">Show log area...</string>

   _23

   <string name="has_login_before">An account has been signed in, please sign out first and then sign in</string>

   _23

   <string name="sign_in_first">Please sign in first</string>

   _23

   <string name="not_find_send_name">Please enter the username who you want to send first!</string>

   _23

   _23

   <string name="app_key">41117440#383391</string>

   _23

   </resources>




2. To add the UI framework, open app/res/layout/activity_main.xml and replace the content with the following:




   _126

   <?xml version="1.0" encoding="utf-8"?>

   _126

   <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

   _126

   xmlns:app="http://schemas.android.com/apk/res-auto"

   _126

   xmlns:tools="http://schemas.android.com/tools"

   _126

   android:layout_width="match_parent"

   _126

   android:layout_height="match_parent"

   _126

   android:orientation="vertical"

   _126

   tools:context=".MainActivity">

   _126

   _126

   <androidx.constraintlayout.widget.ConstraintLayout

   _126

   android:layout_width="match_parent"

   _126

   android:layout_height="0dp"

   _126

   android:layout_weight="1">

   _126

   _126

   <EditText

   _126

   android:id="@+id/et_username"

   _126

   android:layout_width="0dp"

   _126

   android:layout_height="wrap_content"

   _126

   android:hint="@string/enter_username"

   _126

   app:layout_constraintLeft_toLeftOf="parent"

   _126

   app:layout_constraintRight_toLeftOf="@id/et_pwd"

   _126

   app:layout_constraintTop_toTopOf="parent"

   _126

   android:layout_marginStart="20dp"

   _126

   android:layout_marginEnd="20dp"

   _126

   android:layout_marginTop="20dp"/>

   _126

   _126

   <EditText

   _126

   android:id="@+id/et_pwd"

   _126

   android:layout_width="0dp"

   _126

   android:layout_height="wrap_content"

   _126

   android:hint="@string/enter_password"

   _126

   android:inputType="textPassword"

   _126

   app:layout_constraintLeft_toRightOf="@id/et_username"

   _126

   app:layout_constraintRight_toRightOf="parent"

   _126

   app:layout_constraintTop_toTopOf="@id/et_username"

   _126

   android:layout_marginEnd="20dp"/>

   _126

   _126

   <Button

   _126

   android:id="@+id/btn_sign_in"

   _126

   android:layout_width="0dp"

   _126

   android:layout_height="wrap_content"

   _126

   android:textSize="12sp"

   _126

   android:text="@string/sign_in"

   _126

   android:onClick="signInWithToken"

   _126

   app:layout_constraintLeft_toLeftOf="parent"

   _126

   app:layout_constraintTop_toBottomOf="@id/et_pwd"

   _126

   app:layout_constraintRight_toLeftOf="@id/btn_sign_out"

   _126

   android:layout_marginStart="10dp"

   _126

   android:layout_marginEnd="5dp"

   _126

   android:layout_marginTop="10dp"/>

   _126

   _126

   <Button

   _126

   android:id="@+id/btn_sign_out"

   _126

   android:layout_width="0dp"

   _126

   android:layout_height="wrap_content"

   _126

   android:textSize="12sp"

   _126

   android:text="@string/sign_out"

   _126

   android:onClick="signOut"

   _126

   app:layout_constraintLeft_toRightOf="@id/btn_sign_in"

   _126

   app:layout_constraintTop_toBottomOf="@id/et_pwd"

   _126

   app:layout_constraintRight_toLeftOf="@id/btn_sign_up"

   _126

   android:layout_marginStart="5dp"

   _126

   android:layout_marginEnd="5dp"

   _126

   android:layout_marginTop="10dp"/>

   _126

   _126

   <Button

   _126

   android:id="@+id/btn_sign_up"

   _126

   android:layout_width="0dp"

   _126

   android:layout_height="wrap_content"

   _126

   android:text="@string/sign_up"

   _126

   android:textSize="12sp"

   _126

   android:onClick="signUp"

   _126

   app:layout_constraintLeft_toRightOf="@id/btn_sign_out"

   _126

   app:layout_constraintRight_toRightOf="parent"

   _126

   app:layout_constraintTop_toBottomOf="@id/et_pwd"

   _126

   app:layout_constraintTop_toTopOf="@id/btn_sign_in"

   _126

   android:layout_marginStart="5dp"

   _126

   android:layout_marginEnd="10dp"/>

   _126

   _126

   <EditText

   _126

   android:id="@+id/et_to_username"

   _126

   android:layout_width="0dp"

   _126

   android:layout_height="wrap_content"

   _126

   android:hint="@string/enter_to_username"

   _126

   app:layout_constraintLeft_toLeftOf="parent"

   _126

   app:layout_constraintRight_toLeftOf="@id/btn_start_chat"

   _126

   app:layout_constraintTop_toBottomOf="@id/btn_sign_up"

   _126

   app:layout_constraintHorizontal_weight="2"

   _126

   android:layout_marginStart="20dp"

   _126

   android:layout_marginEnd="20dp"

   _126

   android:layout_marginTop="10dp"

   _126

   android:layout_marginBottom="10dp"/>

   _126

   _126

   <Button

   _126

   android:id="@+id/btn_start_chat"

   _126

   android:layout_width="0dp"

   _126

   android:layout_height="wrap_content"

   _126

   android:text="@string/start_chat"

   _126

   android:onClick="startChat"

   _126

   android:textSize="12sp"

   _126

   app:layout_constraintLeft_toRightOf="@id/et_to_username"

   _126

   app:layout_constraintRight_toRightOf="parent"

   _126

   app:layout_constraintBottom_toBottomOf="@id/et_to_username"

   _126

   app:layout_constraintHorizontal_weight="1"

   _126

   android:layout_marginEnd="10dp"/>

   _126

   _126

   <FrameLayout

   _126

   android:id="@+id/fl_fragment"

   _126

   android:layout_width="match_parent"

   _126

   android:layout_height="0dp"

   _126

   app:layout_constraintLeft_toLeftOf="parent"

   _126

   app:layout_constraintRight_toRightOf="parent"

   _126

   app:layout_constraintTop_toBottomOf="@id/btn_start_chat"

   _126

   app:layout_constraintBottom_toBottomOf="parent"/>

   _126

   _126

   </androidx.constraintlayout.widget.ConstraintLayout>

   _126

   _126

   <TextView

   _126

   android:id="@+id/tv_log"

   _126

   android:layout_width="match_parent"

   _126

   android:layout_height="100dp"

   _126

   android:hint="@string/log_hint"

   _126

   android:scrollbars="vertical"

   _126

   android:padding="10dp"/>

   _126

   _126

   </LinearLayout>




To enable your app to send and receive messages between individual users, do the following:

1. Implement sending and receiving messages.

   In app/java/io.agora.agorachatquickstart/MainActivity, replace the code with the following:




   _359

   package io.agora.chatuikitquickstart;

   _359

   _359

   import android.Manifest;

   _359

   import android.os.Bundle;

   _359

   import android.text.TextUtils;

   _359

   import android.text.method.ScrollingMovementMethod;

   _359

   import android.view.MotionEvent;

   _359

   import android.view.View;

   _359

   import android.widget.EditText;

   _359

   import android.widget.TextView;

   _359

   import android.widget.Toast;

   _359

   _359

   import androidx.appcompat.app.AppCompatActivity;

   _359

   import androidx.core.content.ContextCompat;

   _359

   _359

   import org.json.JSONObject;

   _359

   _359

   import java.util.HashMap;

   _359

   import java.util.Map;

   _359

   _359

   import io.agora.CallBack;

   _359

   import io.agora.ConnectionListener;

   _359

   import io.agora.Error;

   _359

   import io.agora.chat.ChatClient;

   _359

   import io.agora.chat.ChatMessage;

   _359

   import io.agora.chat.ChatOptions;

   _359

   import io.agora.chat.uikit.EaseUIKit;

   _359

   import io.agora.chat.uikit.chat.EaseChatFragment;

   _359

   import io.agora.chat.uikit.chat.interfaces.OnChatExtendMenuItemClickListener;

   _359

   import io.agora.chat.uikit.chat.interfaces.OnChatInputChangeListener;

   _359

   import io.agora.chat.uikit.chat.interfaces.OnChatRecordTouchListener;

   _359

   import io.agora.chat.uikit.chat.interfaces.OnMessageSendCallBack;

   _359

   import io.agora.chatuikitquickstart.utils.LogUtils;

   _359

   import io.agora.chatuikitquickstart.utils.PermissionsManager;

   _359

   import io.agora.cloud.HttpClientManager;

   _359

   import io.agora.cloud.HttpResponse;

   _359

   import io.agora.util.EMLog;

   _359

   _359

   import static io.agora.cloud.HttpClientManager.Method_POST;

   _359

   _359

   _359

   public class MainActivity extends AppCompatActivity {

   _359

   private static final String NEW_LOGIN = "NEW_LOGIN";

   _359

   private static final String RENEW_TOKEN = "RENEW_TOKEN";

   _359

   private static final String LOGIN_URL = "https://a41.chat.agora.io/app/chat/user/login";

   _359

   private static final String REGISTER_URL = "https://a41.chat.agora.io/app/chat/user/register";

   _359

   private EditText et_username;

   _359

   private TextView tv_log;

   _359

   private ConnectionListener connectionListener;

   _359

   _359

   @Override

   _359

   protected void onCreate(Bundle savedInstanceState) {

   _359

   super.onCreate(savedInstanceState);

   _359

   setContentView(R.layout.activity_main);

   _359

   initView();

   _359

   requestPermissions();

   _359

   initSDK();

   _359

   addConnectionListener();

   _359

   }

   _359

   _359

   private void initView() {

   _359

   et_username = findViewById(R.id.et_username);

   _359

   tv_log = findViewById(R.id.tv_log);

   _359

   tv_log.setMovementMethod(new ScrollingMovementMethod());

   _359

   }

   _359

   _359

   private void requestPermissions() {

   _359

   checkPermissions(Manifest.permission.WRITE_EXTERNAL_STORAGE, 110);

   _359

   }

   _359

   _359

   //=================== init SDK start ========================

   _359

   private void initSDK() {

   _359

   ChatOptions options = new ChatOptions();

   _359

   // Set your appkey applied from Agora Console

   _359

   String sdkAppkey = getString(R.string.app_key);

   _359

   if(TextUtils.isEmpty(sdkAppkey)) {

   _359

   Toast.makeText(MainActivity.this, "You should set your AppKey first!", Toast.LENGTH_SHORT).show();

   _359

   return;

   _359

   }

   _359

   // Set your appkey to options

   _359

   options.setAppKey(sdkAppkey);

   _359

   // Set whether confirmation of delivery is required by the recipient. Default: false

   _359

   options.setRequireDeliveryAck(true);

   _359

   // Set not to log in automatically

   _359

   options.setAutoLogin(false);

   _359

   // Use uikit to initialize Chat SDK

   _359

   EaseUIKit.getInstance().init(this, options);

   _359

   // Make Chat SDK debuggable

   _359

   ChatClient.getInstance().setDebugMode(true);

   _359

   }

   _359

   //=================== init SDK end ========================

   _359

   //================= SDK listener start ====================

   _359

   private void addConnectionListener() {

   _359

   connectionListener = new ConnectionListener() {

   _359

   @Override

   _359

   public void onConnected() {

   _359

   }

   _359

   _359

   @Override

   _359

   public void onDisconnected(int error) {

   _359

   if (error == Error.USER_REMOVED) {

   _359

   onUserException("account_removed");

   _359

   } else if (error == Error.USER_LOGIN_ANOTHER_DEVICE) {

   _359

   onUserException("account_conflict");

   _359

   } else if (error == Error.SERVER_SERVICE_RESTRICTED) {

   _359

   onUserException("account_forbidden");

   _359

   } else if (error == Error.USER_KICKED_BY_CHANGE_PASSWORD) {

   _359

   onUserException("account_kicked_by_change_password");

   _359

   } else if (error == Error.USER_KICKED_BY_OTHER_DEVICE) {

   _359

   onUserException("account_kicked_by_other_device");

   _359

   } else if(error == Error.USER_BIND_ANOTHER_DEVICE) {

   _359

   onUserException("user_bind_another_device");

   _359

   } else if(error == Error.USER_DEVICE_CHANGED) {

   _359

   onUserException("user_device_changed");

   _359

   } else if(error == Error.USER_LOGIN_TOO_MANY_DEVICES) {

   _359

   onUserException("user_login_too_many_devices");

   _359

   }

   _359

   }

   _359

   _359

   @Override

   _359

   public void onTokenExpired() {

   _359

   //login again

   _359

   signInWithToken(null);

   _359

   LogUtils.showLog(tv_log,"ConnectionListener onTokenExpired");

   _359

   }

   _359

   _359

   @Override

   _359

   public void onTokenWillExpire() {

   _359

   getTokenFromAppServer(RENEW_TOKEN);

   _359

   LogUtils.showLog(tv_log, "ConnectionListener onTokenWillExpire");

   _359

   }

   _359

   };

   _359

   // Call removeConnectionListener(connectionListener) when the activity is destroyed

   _359

   ChatClient.getInstance().addConnectionListener(connectionListener);

   _359

   }

   _359

   _359

   //================= SDK listener end ====================

   _359

   //=================== click event start ========================

   _359

   _359

   /**

   _359

   * Sign up with username and password.

   _359

   */

   _359

   public void signUp(View view) {

   _359

   String username = et_username.getText().toString().trim();

   _359

   String pwd = ((EditText) findViewById(R.id.et_pwd)).getText().toString().trim();

   _359

   if(TextUtils.isEmpty(username) || TextUtils.isEmpty(pwd)) {

   _359

   LogUtils.showErrorToast(this, tv_log, getString(R.string.username_or_pwd_miss));

   _359

   return;

   _359

   }

   _359

   execute(()-> {

   _359

   try {

   _359

   Map<String, String> headers = new HashMap<>();

   _359

   headers.put("Content-Type", "application/json");

   _359

   JSONObject request = new JSONObject();

   _359

   request.putOpt("userAccount", username);

   _359

   request.putOpt("userPassword", pwd);

   _359

   _359

   LogUtils.showErrorLog(tv_log,"begin to signUp...");

   _359

   _359

   HttpResponse response = HttpClientManager.httpExecute(REGISTER_URL, headers, request.toString(), Method_POST);

   _359

   int code= response.code;

   _359

   String responseInfo = response.content;

   _359

   if (code == 200) {

   _359

   if (responseInfo != null && responseInfo.length() > 0) {

   _359

   JSONObject object = new JSONObject(responseInfo);

   _359

   String resultCode = object.getString("code");

   _359

   if(resultCode.equals("RES_OK")) {

   _359

   LogUtils.showToast(MainActivity.this, tv_log, getString(R.string.sign_up_success));

   _359

   }else{

   _359

   String errorInfo = object.getString("errorInfo");

   _359

   LogUtils.showErrorLog(tv_log,errorInfo);

   _359

   }

   _359

   } else {

   _359

   LogUtils.showErrorLog(tv_log,responseInfo);

   _359

   }

   _359

   } else {

   _359

   LogUtils.showErrorLog(tv_log,responseInfo);

   _359

   }

   _359

   } catch (Exception e) {

   _359

   e.printStackTrace();

   _359

   LogUtils.showErrorLog(tv_log, e.getMessage());

   _359

   }

   _359

   });

   _359

   }

   _359

   _359

   /**

   _359

   * Log in with token.

   _359

   */

   _359

   public void signInWithToken(View view) {

   _359

   getTokenFromAppServer(NEW_LOGIN);

   _359

   }

   _359

   _359

   /**

   _359

   * Sign out.

   _359

   */

   _359

   public void signOut(View view) {

   _359

   if(ChatClient.getInstance().isLoggedInBefore()) {

   _359

   ChatClient.getInstance().logout(true, new CallBack() {

   _359

   @Override

   _359

   public void onSuccess() {

   _359

   LogUtils.showToast(MainActivity.this, tv_log, getString(R.string.sign_out_success));

   _359

   }

   _359

   _359

   @Override

   _359

   public void onError(int code, String error) {

   _359

   LogUtils.showErrorToast(MainActivity.this, tv_log, "Sign out failed! code: "+code + " error: "+error);

   _359

   }

   _359

   _359

   @Override

   _359

   public void onProgress(int progress, String status) {

   _359

   _359

   }

   _359

   });

   _359

   }

   _359

   }

   _359

   _359

   public void startChat(View view) {

   _359

   EditText et_to_username = findViewById(R.id.et_to_username);

   _359

   String toChatUsername = et_to_username.getText().toString().trim();

   _359

   // check username

   _359

   if(TextUtils.isEmpty(toChatUsername)) {

   _359

   LogUtils.showErrorToast(this, tv_log, getString(R.string.not_find_send_name));

   _359

   return;

   _359

   }

   _359

   // 1: single chat; 2: group chat; 3: chat room

   _359

   EaseChatFragment fragment = new EaseChatFragment.Builder(toChatUsername, 1)

   _359

   .useHeader(false)

   _359

   .setOnChatExtendMenuItemClickListener(new OnChatExtendMenuItemClickListener() {

   _359

   @Override

   _359

   public boolean onChatExtendMenuItemClick(View view, int itemId) {

   _359

   if(itemId == io.agora.chat.uikit.R.id.extend_item_take_picture) {

   _359

   return !checkPermissions(Manifest.permission.CAMERA, 111);

   _359

   }else if(itemId == io.agora.chat.uikit.R.id.extend_item_picture || itemId == io.agora.chat.uikit.R.id.extend_item_file || itemId == io.agora.chat.uikit.R.id.extend_item_video) {

   _359

   return !checkPermissions(Manifest.permission.READ_EXTERNAL_STORAGE, 112);

   _359

   }

   _359

   return false;

   _359

   }

   _359

   })

   _359

   .setOnChatRecordTouchListener(new OnChatRecordTouchListener() {

   _359

   @Override

   _359

   public boolean onRecordTouch(View v, MotionEvent event) {

   _359

   return !checkPermissions(Manifest.permission.RECORD_AUDIO, 113);

   _359

   }

   _359

   })

   _359

   .setOnMessageSendCallBack(new OnMessageSendCallBack() {

   _359

   @Override

   _359

   public void onSuccess(ChatMessage message) {

   _359

   LogUtils.showLog(tv_log, "Send success: message type: " + message.getType().name());

   _359

   }

   _359

   _359

   @Override

   _359

   public void onError(int code, String errorMsg) {

   _359

   LogUtils.showErrorLog(tv_log, "Send failed: error code: "+code + " errorMsg: "+errorMsg);

   _359

   }

   _359

   })

   _359

   .build();

   _359

   getSupportFragmentManager().beginTransaction().replace(R.id.fl_fragment, fragment).commit();

   _359

   }

   _359

   //=================== click event end ========================

   _359

   //=================== get token from server start ========================

   _359

   _359

   private void getTokenFromAppServer(String requestType) {

   _359

   if(ChatClient.getInstance().getOptions().getAutoLogin() && ChatClient.getInstance().isLoggedInBefore()) {

   _359

   LogUtils.showErrorLog(tv_log, getString(R.string.has_login_before));

   _359

   return;

   _359

   }

   _359

   String username = et_username.getText().toString().trim();

   _359

   String pwd = ((EditText) findViewById(R.id.et_pwd)).getText().toString().trim();

   _359

   if(TextUtils.isEmpty(username) || TextUtils.isEmpty(pwd)) {

   _359

   LogUtils.showErrorToast(MainActivity.this, tv_log, getString(R.string.username_or_pwd_miss));

   _359

   return;

   _359

   }

   _359

   execute(()-> {

   _359

   try {

   _359

   Map<String, String> headers = new HashMap<>();

   _359

   headers.put("Content-Type", "application/json");

   _359

   _359

   JSONObject request = new JSONObject();

   _359

   request.putOpt("userAccount", username);

   _359

   request.putOpt("userPassword", pwd);

   _359

   _359

   LogUtils.showErrorLog(tv_log,"begin to getTokenFromAppServer ...");

   _359

   _359

   HttpResponse response = HttpClientManager.httpExecute(LOGIN_URL, headers, request.toString(), Method_POST);

   _359

   int code = response.code;

   _359

   String responseInfo = response.content;

   _359

   if (code == 200) {

   _359

   if (responseInfo != null && responseInfo.length() > 0) {

   _359

   JSONObject object = new JSONObject(responseInfo);

   _359

   String token = object.getString("accessToken");

   _359

   if(TextUtils.equals(requestType, NEW_LOGIN)) {

   _359

   ChatClient.getInstance().loginWithAgoraToken(username, token, new CallBack() {

   _359

   @Override

   _359

   public void onSuccess() {

   _359

   LogUtils.showToast(MainActivity.this, tv_log, getString(R.string.sign_in_success));

   _359

   }

   _359

   _359

   @Override

   _359

   public void onError(int code, String error) {

   _359

   LogUtils.showErrorToast(MainActivity.this, tv_log, "Login failed! code: " + code + " error: " + error);

   _359

   }

   _359

   _359

   @Override

   _359

   public void onProgress(int progress, String status) {

   _359

   _359

   }

   _359

   });

   _359

   }else if(TextUtils.equals(requestType, RENEW_TOKEN)) {

   _359

   ChatClient.getInstance().renewToken(token);

   _359

   }

   _359

   _359

   } else {

   _359

   LogUtils.showErrorToast(MainActivity.this, tv_log, "getTokenFromAppServer failed! code: " + code + " error: " + responseInfo);

   _359

   }

   _359

   } else {

   _359

   LogUtils.showErrorToast(MainActivity.this, tv_log, "getTokenFromAppServer failed! code: " + code + " error: " + responseInfo);

   _359

   }

   _359

   } catch (Exception e) {

   _359

   e.printStackTrace();

   _359

   LogUtils.showErrorToast(MainActivity.this, tv_log, "getTokenFromAppServer failed! code: " + 0 + " error: " + e.getMessage());

   _359

   _359

   }

   _359

   });

   _359

   }

   _359

   //=================== get token from server end ========================

   _359

   _359

   /**

   _359

   * Check and request permission

   _359

   * @param permission

   _359

   * @param requestCode

   _359

   * @return

   _359

   */

   _359

   private boolean checkPermissions(String permission, int requestCode) {

   _359

   if(!PermissionsManager.getInstance().hasPermission(this, permission)) {

   _359

   PermissionsManager.getInstance().requestPermissions(this, new String[]{permission}, requestCode);

   _359

   return false;

   _359

   }

   _359

   return true;

   _359

   }

   _359

   /**

   _359

   * user met some exception: conflict, removed or forbidden， goto login activity

   _359

   */

   _359

   protected void onUserException(String exception) {

   _359

   LogUtils.showLog(tv_log, "onUserException: " + exception);

   _359

   ChatClient.getInstance().logout(false, null);

   _359

   }

   _359

   _359

   public void execute(Runnable runnable) {

   _359

   new Thread(runnable).start();

   _359

   }

   _359

   _359

   @Override

   _359

   protected void onDestroy() {

   _359

   super.onDestroy();

   _359

   if(connectionListener != null) {

   _359

   ChatClient.getInstance().removeConnectionListener(connectionListener);

   _359

   }

   _359

   }

   _359

   }




2. Add LogUtils and PermissionsManager.

   To make troubleshooting less time-consuming, this quickstart also uses LogUtils class for logs. Navigate to app/java/io.agora.agorachatquickstart/, create a folder named utils. In this new folder, create a .java file, name it LogUtils, and copy the following codes into the file.




   _69

   package io.agora.chatuikitquickstart.utils;

   _69

   _69

   import android.app.Activity;

   _69

   import android.text.TextUtils;

   _69

   import android.util.Log;

   _69

   import android.widget.TextView;

   _69

   import android.widget.Toast;

   _69

   _69

   import java.text.SimpleDateFormat;

   _69

   import java.util.Date;

   _69

   import java.util.Locale;

   _69

   _69

   public class LogUtils {

   _69

   private static final String TAG = LogUtils.class.getSimpleName();

   _69

   _69

   public static void showErrorLog(TextView tvLog, String content) {

   _69

   showLog(tvLog, content);

   _69

   }

   _69

   _69

   public static void showNormalLog(TextView tvLog, String content) {

   _69

   showLog(tvLog, content);

   _69

   }

   _69

   _69

   public static void showLog(TextView tvLog, String content) {

   _69

   if(TextUtils.isEmpty(content) || tvLog == null) {

   _69

   return;

   _69

   }

   _69

   String preContent = tvLog.getText().toString().trim();

   _69

   StringBuilder builder = new StringBuilder();

   _69

   builder.append(formatCurrentTime())

   _69

   .append(" ")

   _69

   .append(content)

   _69

   .append("\n")

   _69

   .append(preContent);

   _69

   tvLog.post(()-> {

   _69

   tvLog.setText(builder);

   _69

   });

   _69

   }

   _69

   _69

   public static void showErrorToast(Activity activity, TextView tvLog, String content) {

   _69

   if(activity == null || activity.isFinishing()) {

   _69

   Log.e(TAG, "Context is null...");

   _69

   return;

   _69

   }

   _69

   if(TextUtils.isEmpty(content)) {

   _69

   return;

   _69

   }

   _69

   activity.runOnUiThread(()-> {

   _69

   Toast.makeText(activity, content, Toast.LENGTH_SHORT).show();

   _69

   showErrorLog(tvLog,content);

   _69

   });

   _69

   }

   _69

   _69

   public static void showToast(Activity activity, TextView tvLog, String content) {

   _69

   if(TextUtils.isEmpty(content) || activity == null || activity.isFinishing()) {

   _69

   return;

   _69

   }

   _69

   activity.runOnUiThread(()-> {

   _69

   Toast.makeText(activity, content, Toast.LENGTH_SHORT).show();

   _69

   showNormalLog(tvLog, content);

   _69

   });

   _69

   }

   _69

   _69

   private static String formatCurrentTime() {

   _69

   SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss", Locale.getDefault());

   _69

   return sdf.format(new Date());

   _69

   }

   _69

   _69

   }




   When your app launches, check if the permissions necessary to insert real-time chat into the app are granted. In the utils file, create a .java file, name it PermissionsManager, and copy the following codes into the file.




   _44

   package io.agora.chatuikitquickstart.utils;

   _44

   _44

   import android.app.Activity;

   _44

   import android.content.Context;

   _44

   import android.content.pm.PackageManager;

   _44

   _44

   import androidx.annotation.NonNull;

   _44

   import androidx.annotation.Nullable;

   _44

   import androidx.core.app.ActivityCompat;

   _44

   _44

   public class PermissionsManager {

   _44

   private static PermissionsManager mInstance = null;

   _44

   _44

   public static PermissionsManager getInstance() {

   _44

   if (mInstance == null) {

   _44

   mInstance = new PermissionsManager();

   _44

   }

   _44

   return mInstance;

   _44

   }

   _44

   _44

   private PermissionsManager() {}

   _44

   _44

   /**

   _44

   * Check if has permission

   _44

   * @param context

   _44

   * @param permission

   _44

   * @return

   _44

   */

   _44

   @SuppressWarnings("unused")

   _44

   public synchronized boolean hasPermission(@Nullable Context context, @NonNull String permission) {

   _44

   return context != null && ActivityCompat.checkSelfPermission(context, permission)

   _44

   == PackageManager.PERMISSION_GRANTED;

   _44

   }

   _44

   _44

   /**

   _44

   * Request permissions

   _44

   * @param activity

   _44

   * @param permissions

   _44

   * @param requestCode

   _44

   */

   _44

   public synchronized void requestPermissions(Activity activity, String[] permissions, int requestCode) {

   _44

   ActivityCompat.requestPermissions(activity, permissions, requestCode);

   _44

   }

   _44

   }




3. To send image and file messages, take the following configurations:

   Under /app/src/main/res/, create a folder, name it xml, and create an xml file named file_paths.xml under xml. Open file_paths.xml, replace the code with the following:




   _5

   <?xml version="1.0" encoding="utf-8"?>

   _5

   <paths>

   _5

   <external-path path="Android/data/io/agora/chatuikitquickstart/" name="files_root" />

   _5

   <external-path path="." name="external_storage_root" />

   _5

   </paths>




   In /app/Manifests/AndroidManifest.xml, add the following lines before </application>:




   _10

   <!-- After android 7.0, you should add -->

   _10

   <provider

   _10

   android:name="androidx.core.content.FileProvider"

   _10

   android:authorities="${applicationId}.fileProvider"

   _10

   android:grantUriPermissions="true"

   _10

   android:exported="false">

   _10

   <meta-data

   _10

   android:name="android.support.FILE_PROVIDER_PATHS"

   _10

   android:resource="@xml/file_paths" />

   _10

   </provider>




4. Click Sync Project with Gradle Files to sync your project. Now you are ready to test your app.

To validate the peer-to-peer messaging you have just integrated into your app using Chat:

1. In Android Studio, click Run 'app'.

   You see the following interface on your simulator or physical device:



2. Create a user account and click SIGN UP. Click Sign in and you will see a log that says Sign in success.

3. Run the app on another Android device or simulator and create another user account. Ensure that the usernames you created are unique.

4. On the first device or simulator, enter the username you just created and click START CHAT. You can now start chatting between the two clients.



For demonstration purposes, Chat provides an app server that enables you to quickly retrieve a token using the App Key given in this guide. In a production context, the best practice is for you to deploy your own token server, use your own App Key to generate a token, and retrieve the token on the client side to log in to Agora. To see how to implement a server that generates and serves tokens on request, see Generate a User Token.

Agora provides the fully featured AgoraChat-Starter-Kit-Android demo app as an implementation reference.

• Android

  1. Enable the Developer options on your Android device, and then connect it.
  2. Run npx react-native run-android in the project root directory.

• iOS:

  1. In Xcode, run your project.
